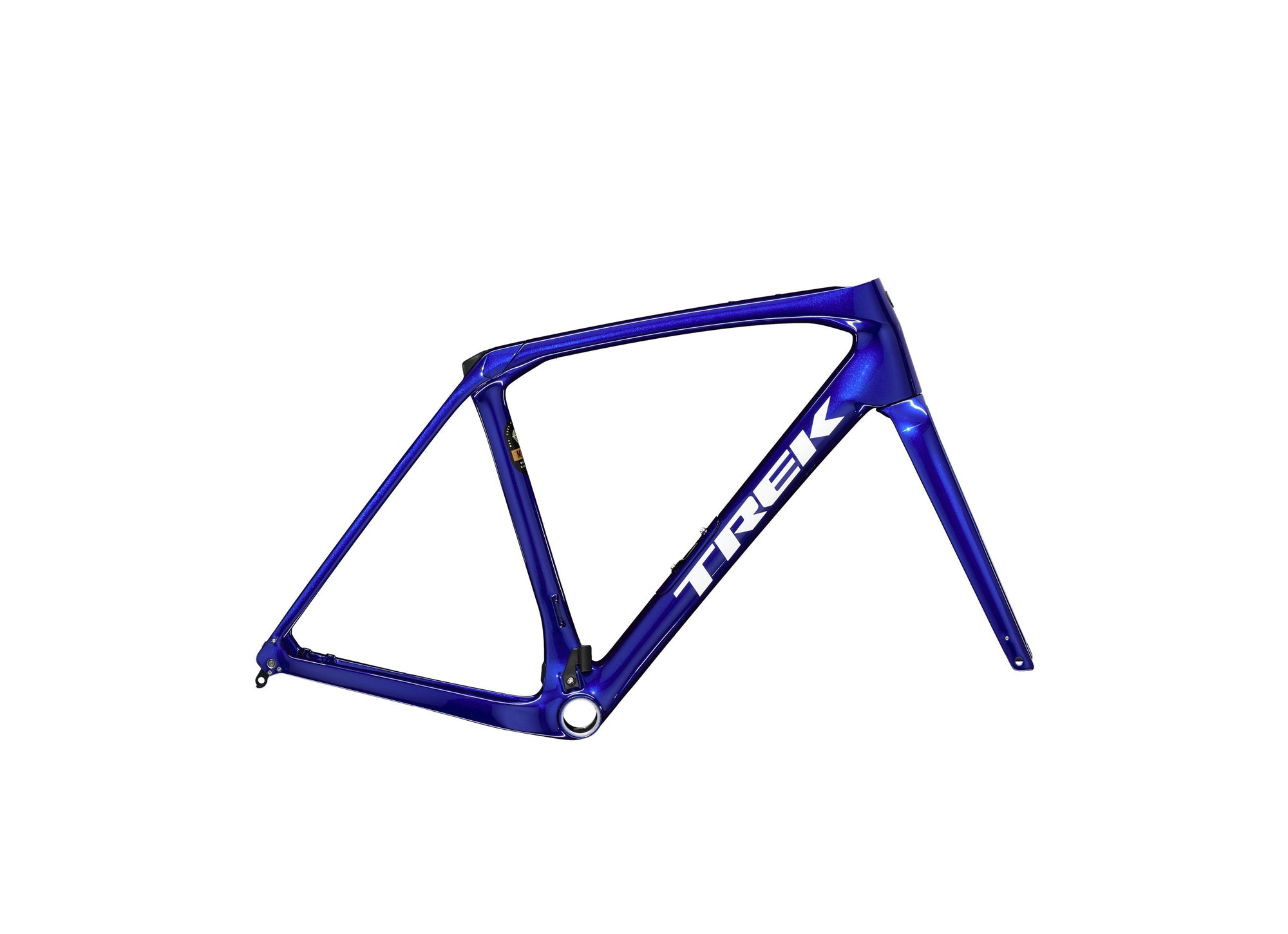

The lightweight Domane SL Frameset is built for your longest rides and the roughest conditions. Crafted with 500 Series OCLV Carbon and road-smoothing rear IsoSpeed, Domane SL is meticulously built so that you can stay stronger longer. This carbon endurance road frame is designed for flat-mount disc brakes, has a built-in storage compartment, and includes a headset and a Domane SL carbon fork. It offers plenty of tire clearance so you can roll on up to 38mm tires for cushioning on rough roads and light gravel.
![]()
![]()
![]()
![]()
![]()
![]()
- Domane SL Gen 4s aero Kammtail tube shapes and rear IsoSpeed comfort technology come together for a super fast, light, and smooth ride
- This bike is super versatile and equally suited to all-day adventures on the open road, club rides, and racing
- Road-smoothing IsoSpeed and clearance for up to 38mm tires absorbs fatiguing bumps in the road for a smoother, more comfortable ride
- A convenient internal storage compartment gives you a versatile spot to stow tools and gear, while top tube mounts let you cleanly bolt on a bag for all day adventures
The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
Podium-topping speed
Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
Lighter than ever
Light and strong 500 Series OCLV Carbon and a new gram-saving design make this the lightest Domane SL disc ever.
Versatile tire clearance
Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.
Internal storage
Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.
Refined integration
Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Skewer Front | Bontrager Switch thru axle, removable lever |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
Geometry Chart
| B B Drop | 7.8 |
| Chainstay Length | 42.5 |
| Eff Top Tube | 56.7 |
| Frame Reach | 38 |
| Frame Size Number | 58cm |
| Frame Stack | 61.1 |
| Head Angle | 72.0° |
| Head Tube Length | 19.5 |
| Offset | 4.8 |
| Saddle Rail Height Max Short | 75.5 |
| Saddle Rail Height Max Tall | 78.5 |
| Saddle Rail Height Min Short | 69 |
| Saddle Rail Height Min Tall | 72 |
| Seat Tube | 54.8 |
| Seat Tube Angle | 73.0° |
| Standover | 79.6 |
| Trail | 6 |
| Wheelbase | 102.2 |
| Wheel Size | 700c |
