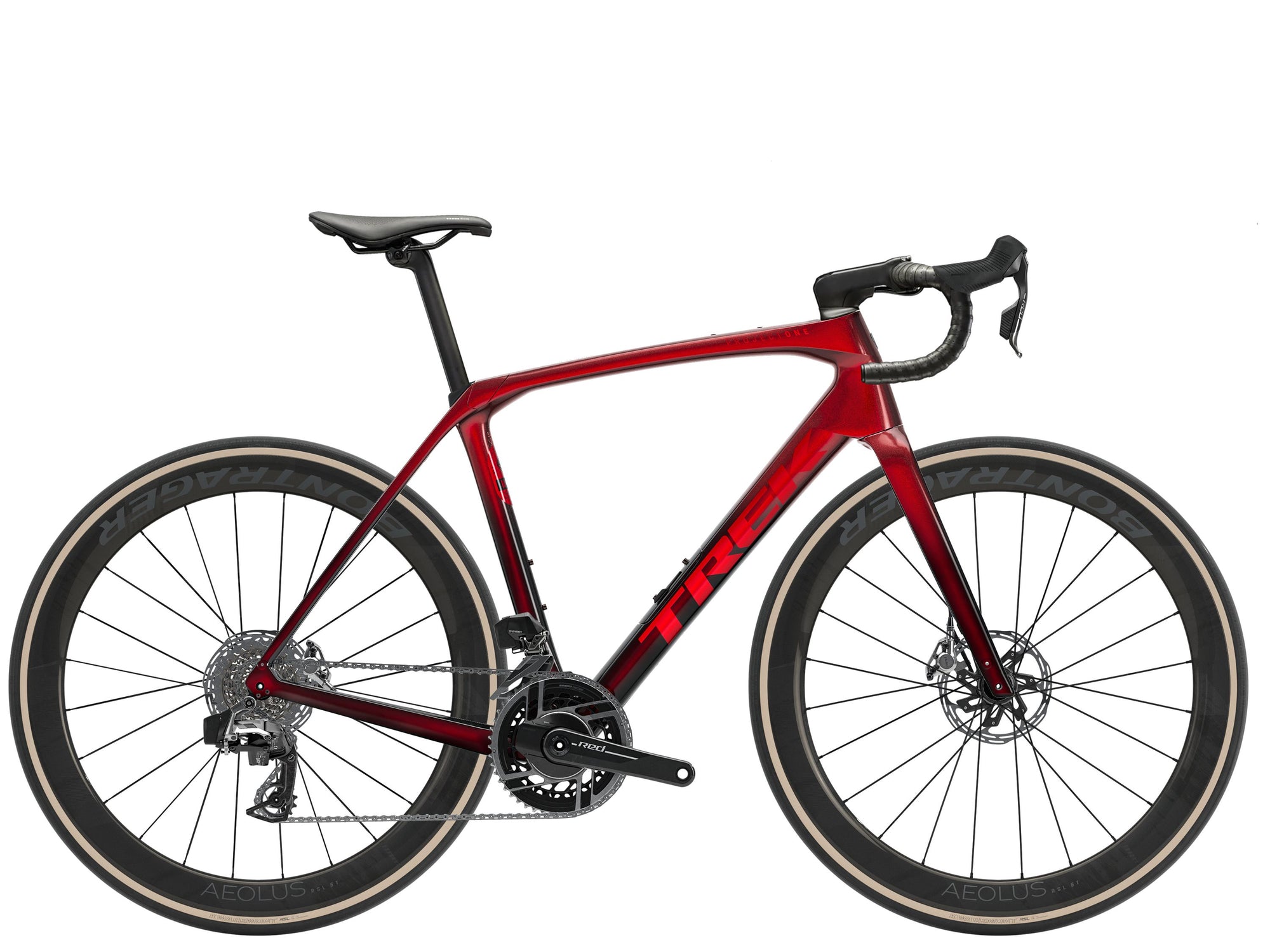

Domane SLR 9 AXS is our top-of-the-line, ultralight carbon endurance road bike decked out with the best parts for a fast, high-performance ride. You get an 800 Series OCLV Carbon frame with rear IsoSpeed, a 2x12 SRAM RED AXS E1 electronic drivetrain, and OCLV Carbon wheels and handlebars.
![]()
![]()
![]()
![]()
![]()
![]()
The smooth advantage
Newly refined IsoSpeed soaks up fatiguing bumps and saves weight so you can ride stronger longer.
Podium-topping speed
Raced to victory on the infamous cobblestones of Paris-Roubaix, the new carbon Domane is faster than ever thanks to new aerodynamic improvements and an ultra-light design.
Lighter than ever
Our best and lightest 800 Series OCLV Carbon and a new gram-saving design make this our lightest Domane SLR disc ever.
Versatile tire clearance
Comes equipped with fast rolling 32mm tires, but offers clearance for up to 38mm tires so you can confidently ride everything from smooth pavement to light gravel.
Internal storage
Internal downtube storage and top tube bag mounts make it easy to carry everything you need for all-day rides.
Refined integration
Domane is more integrated than ever, with hidden cables and a hidden seatpost clamp.
| Frame | 800 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle |
| Fork | Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
| Wheel Front | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle |
| Wheel Rear | Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle |
| Tire | Bontrager Kwaremont RSL TLR, tubeless ready, folding bead, Race Dual-Compound, 320 tpi, 700x32mm |
| Tire Part | Bontrager TLR sealant, 6oz |
| Skewer Front | Bontrager Switch thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | SRAM RED AXS E1 |
| Front Derailleur | SRAM RED AXS E1, braze-on |
| Rear Derailleur | SRAM RED AXS E1, 36T max cog |
| Crank | SRAM RED AXS E1, power meter, 46/33, DUB, 170mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM RED XG-1290 E1, 10-36, 12 speed |
| Chain | SRAM RED E1, 12/13 speed |
| Brake | SRAM Red AXS E1 hydraulic disc, flat mount |
| Brake Rotor | SRAM Paceline X, rounded, centerlock, 160mm |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Seatpost | KVF aero carbon seatpost, 20mm offset, 280mm length |
| Handlebar | Bontrager Aero Pro, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm width |
| Stem | Trek RCS Pro, -7 degree, 90mm length |
| Battery | SRAM AXS battery pack (with charger) |
Geometry Chart
| B B Drop | 8 |
| Chainstay Length | 42 |
| Eff Top Tube | 53 |
| Frame Reach | 37.1 |
| Frame Size Number | 52cm |
| Frame Stack | 56.1 |
| Head Angle | 71.3° |
| Head Tube Length | 14.5 |
| Offset | 5.3 |
| Saddle Rail Height Max Short | 68 |
| Saddle Rail Height Max Tall | 71 |
| Saddle Rail Height Min Short | 61.5 |
| Saddle Rail Height Min Tall | 64.5 |
| Seat Tube | 47.5 |
| Seat Tube Angle | 74.2° |
| Standover | 73.5 |
| Trail | 5.9 |
| Wheelbase | 100.3 |
| Wheel Size | 700c |
