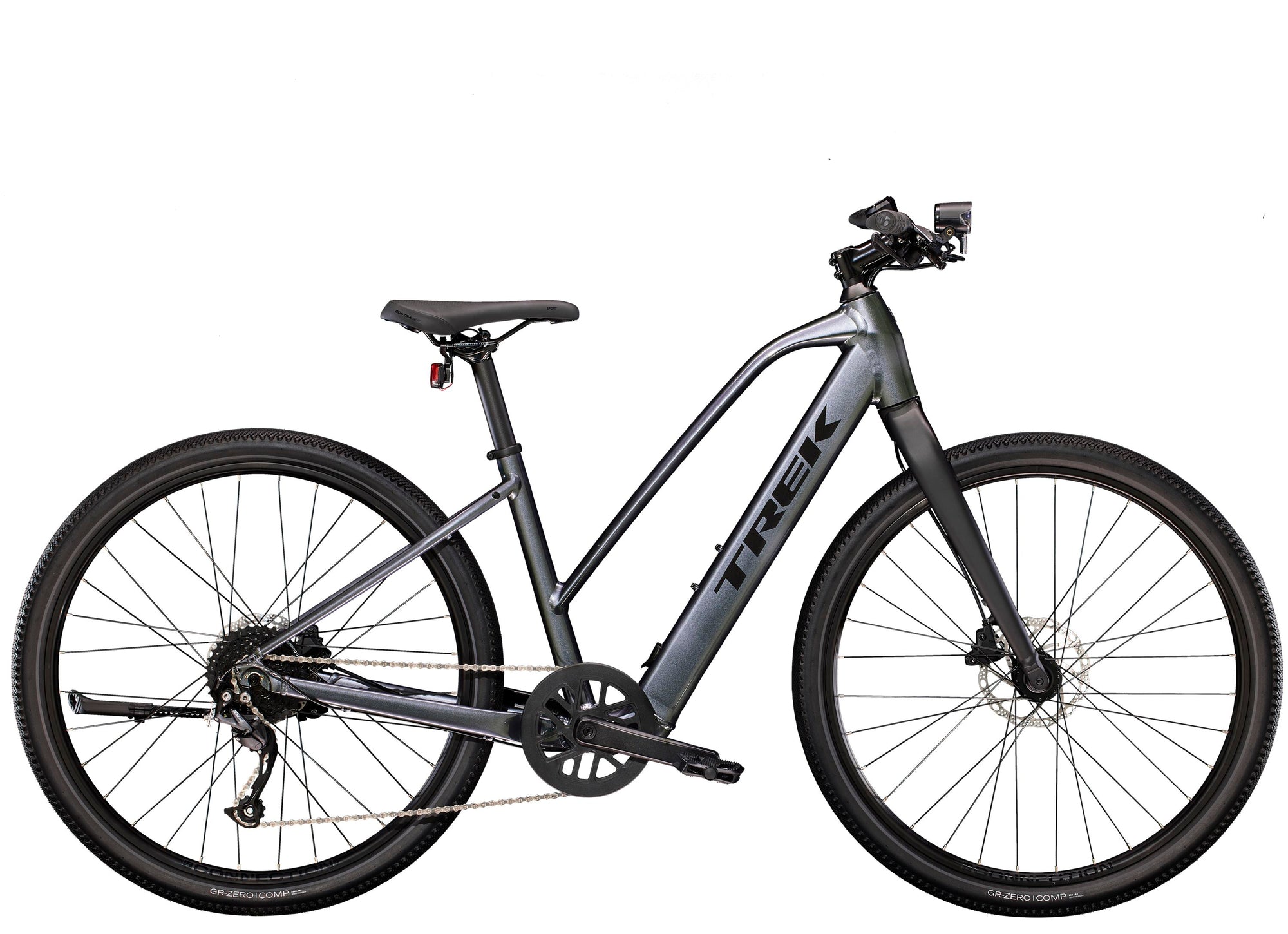

Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on pavement and light trails. It has an intuitive and natural feeling pedal assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tires give you confidence on varied terrain.
- This is our lightest hybrid e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs
- The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
- Stiff wheels and wide tires give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
- Its easy to accessorize with fenders and a rear rack to carry everything you need
- Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
Powerful drive system
A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.
![]()
Ultra-light design
Our lightest hybrid e-bike ever, Dual Sport+ weighs in at around 40 pounds.
![]()
Sleek hidden battery
A reliable 250Wh internal battery system assists up to 35 miles with an easily accessible charging port right on the downtube.
![]()
Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.
![]()
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
![]()
| Frame |
Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
| Fork |
DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
| Wheel Front |
/ |
| Tire |
Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50mm |
| Hub Front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Hub Rear |
Hyena hub drive motor, 40Nm, 250W |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve |
| Spokes |
14g stainless steel, black |
| Skewer Front |
135x5mm bolt-on |
| Shifter |
Shimano Altus M2010, 9 speed |
| Rear Derailleur |
Shimano Altus M2000, long cage |
| Crank |
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length |
| Bottom Bracket |
Torque sensor, threaded, 122.5mm spindle |
| Cassette |
Shimano HG200, 11-36, 9 speed |
| Chain |
KMC X9 |
| Brake |
Shimano hydraulic disc, MT200 lever, UR300 caliper // Shimano hydraulic disc, MT200 lever, UR300 caliper |
| Brake Rotor |
Shimano RT26, 6-bolt,160mm |
| Pedal |
Bontrager City pedals |
| Saddle |
Bontrager Sport Womens |
| Seatpost |
Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Seat Collar |
Bolt-on, 36.4mm |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 660mm width |
| Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Grips |
Bontrager XR Endurance Comp, lock-on |
| Light |
Herrmans MR4, 120 lumen, 40 lux, LED, headlight // Spanninga Solo, taillight |
| Kickstand |
Adjustable length alloy kickstand |
| Battery |
250Wh, integrated in down tube |
| Charger |
2A, 42V output, 100V-240V AC input |
Geometry Chart
| B B Drop |
7 |
| B B Height |
27.8 |
| Chainstay Length |
46.8 |
| Eff Top Tube |
56.9 |
| Frame Reach |
38.2 |
| Frame Size Letter |
S |
| Frame Size Number |
45cm |
| Frame Stack |
60.4 |
| Head Angle |
70.0° |
| Head Tube Length |
15.5 |
| Offset |
5 |
| Seat Tube |
40.8 |
| Seat Tube Angle |
73.5° |
| Standover |
65.5 |
| Trail |
7.6 |
| Wheelbase |
109.2 |
| Wheel Size |
27.5" |
| B B Drop |
7 |
| B B Height |
27.8 |
| Chainstay Length |
46.8 |
| Eff Top Tube |
57.4 |
| Frame Reach |
38.5 |
| Frame Size Letter |
M |
| Frame Size Number |
50cm |
| Frame Stack |
62 |
| Head Angle |
70.5° |
| Head Tube Length |
17 |
| Offset |
5 |
| Seat Tube |
46.3 |
| Seat Tube Angle |
73.0° |
| Standover |
67.2 |
| Trail |
7.3 |
| Wheelbase |
109.5 |
| Wheel Size |
27.5" |
| B B Drop |
7 |
| B B Height |
27.8 |
| Chainstay Length |
46.8 |
| Eff Top Tube |
59.2 |
| Frame Reach |
39.3 |
| Frame Size Letter |
L |
| Frame Size Number |
55cm |
| Frame Stack |
65 |
| Head Angle |
71.0° |
| Head Tube Length |
20 |
| Offset |
5 |
| Seat Tube |
50.7 |
| Seat Tube Angle |
73.0° |
| Standover |
69.3 |
| Trail |
6.9 |
| Wheelbase |
110.9 |
| Wheel Size |
27.5" |
