Émonda SL Disc frameset is a perfect starting point for your custom lightweight build. Its aerodynamic frame is built with 500 Series OCLV Carbon and designed for disc brakes, which makes for a bike thats not only ultra-fast up climbs and on straightaways, but also one that brakes better in all weather conditions.
- Aerodynamic tube shaping makes this Émonda ready to roll wicked fast on flats and climbs alike
- Its not just super light, its also perfectly balanced for great handling and cornering
- Its got climbing in its genes, and the lightweight OCLV Carbon frame lets you explore bigger mountains with less effort
- Like every Émonda, its light and fast — and its backed by our lifetime warranty

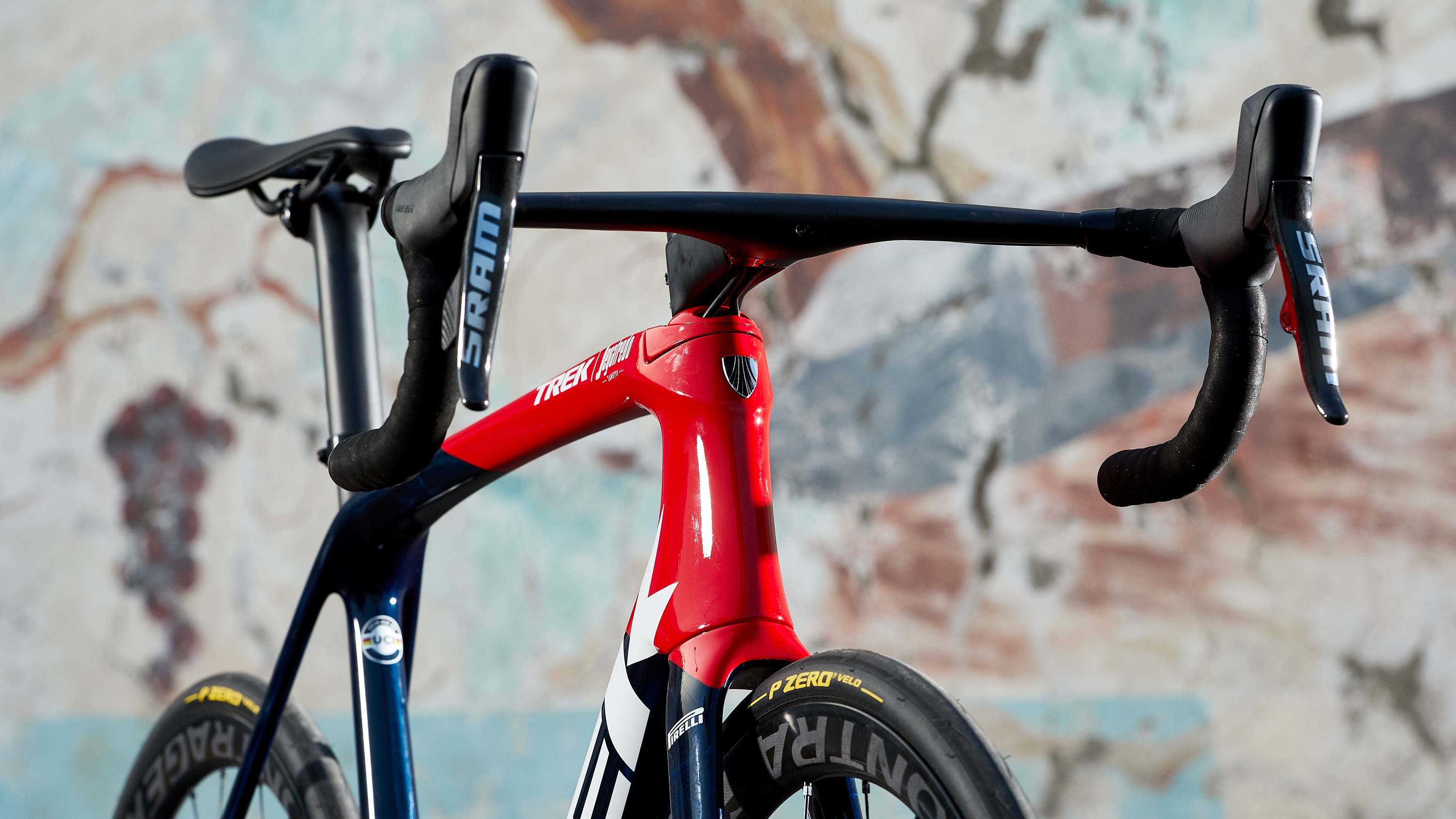

All-new aero design
Faster on climbs, faster on the flats. The aero tube shapes on the all-new Émonda give you an advantage wherever you’re riding. Plus, Émonda SLR is equipped with a sleek new Aeolus RSL bar/stem for front-end aero performance.
![]()
Awesome bikes for everyone
Every rider—regardless of gender, body type, riding style, or ability—deserves a great bike. The all-new Émonda is equipped with size-specific components that deliver a great fit to competitive riders of all genders.
![]()
| Frame |
Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Fork |
Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Skewer Front |
Bontrager Switch thru axle |
| Skewer Rear |
Bontrager Switch thru axle, removable lever |
| Front Derailleur |
Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs) |
| Seatpost |
Not included |
Geometry Chart
| B B Drop |
7.2 |
| Chainstay Length |
41 |
| Eff Top Tube |
51.2 |
| Frame Reach |
37.3 |
| Frame Size Number |
47cm |
| Frame Stack |
50.7 |
| Head Angle |
72.1° |
| Head Tube Length |
10 |
| Offset |
4.5 |
| Saddle Rail Height Max Short |
61.5 |
| Saddle Rail Height Max Tall |
65 |
| Saddle Rail Height Min Short |
55.5 |
| Saddle Rail Height Min Tall |
59 |
| Seat Tube |
42.4 |
| Seat Tube Angle |
74.6° |
| Standover |
69.2 |
| Trail |
6.8 |
| Wheelbase |
97.2 |
| Wheel Size |
700c |
