Adapt, rip, repeat
Only you can define your perfect trail bike — thats why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, youve got tons of options for aftermarket upgrades, including angle adjust or anodized colors.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
Fuels new frame gives you tons of room for long dropper posts, bigger shocks, frame bags, and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

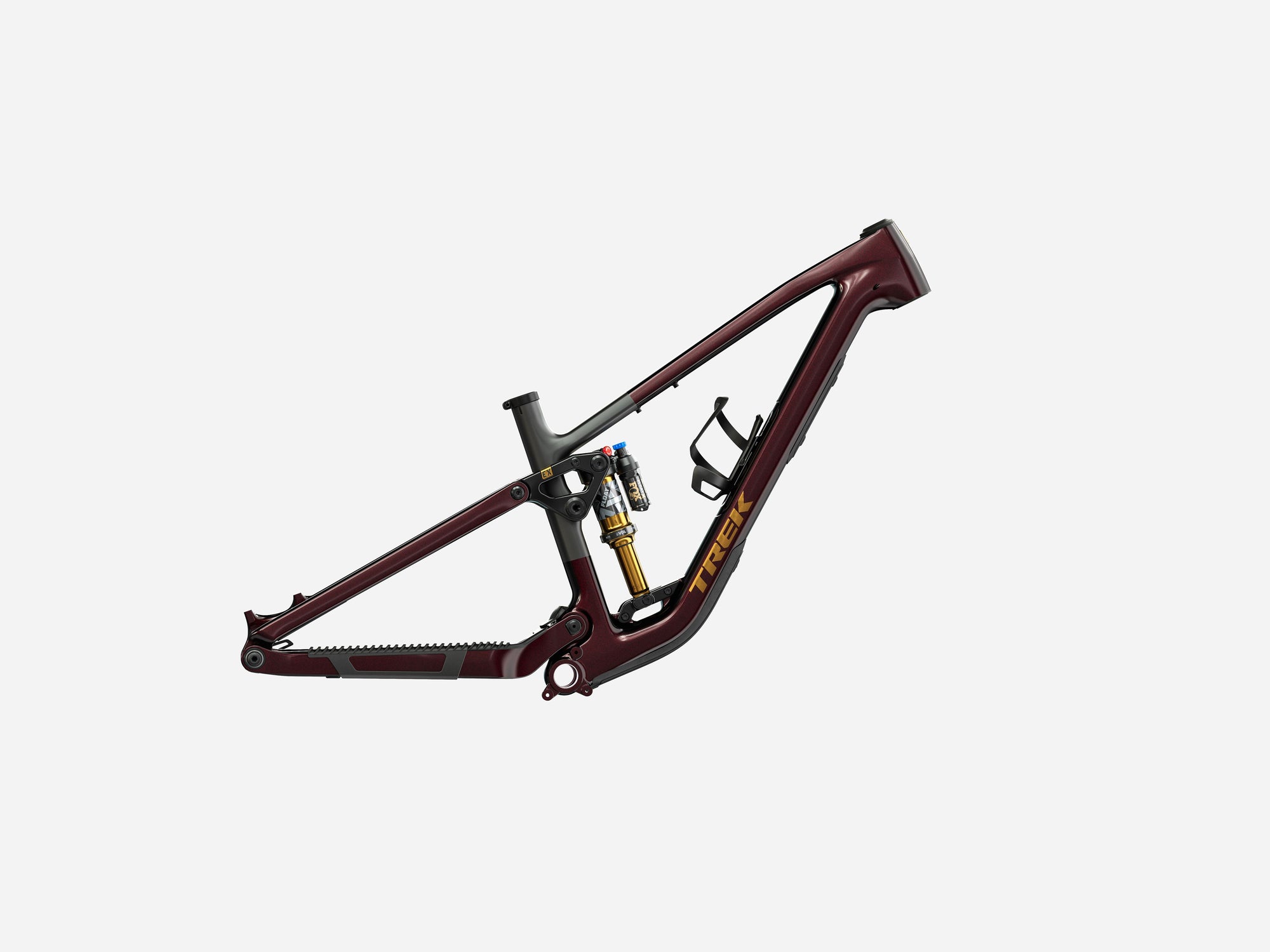

| Frame | OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm |
| Shock | Fox Factory Float X, 205mm x 60mm |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
Geometry Chart
| B B Drop | 3.5 |
| B B Height | 33.9 |
| Chainstay Length | 43.7 |
| Eff Seat Tube Angle | 78.3° |
| Eff Top Tube | 58.3 |
| Frame Reach | 46 |
| Frame Size Letter | M |
| Frame Size Number | 17.5" |
| Frame Stack | 62.4 |
| Head Angle | 64.5° |
| Head Tube Length | 11 |
| Offset | 4.4 |
| Seat Tube | 40 |
| Seat Tube Angle | 72.6° |
| Standover | 74.4 |
| Trail | 12.9 |
| Wheelbase | 122.5 |
| Wheel Size | 29" |
