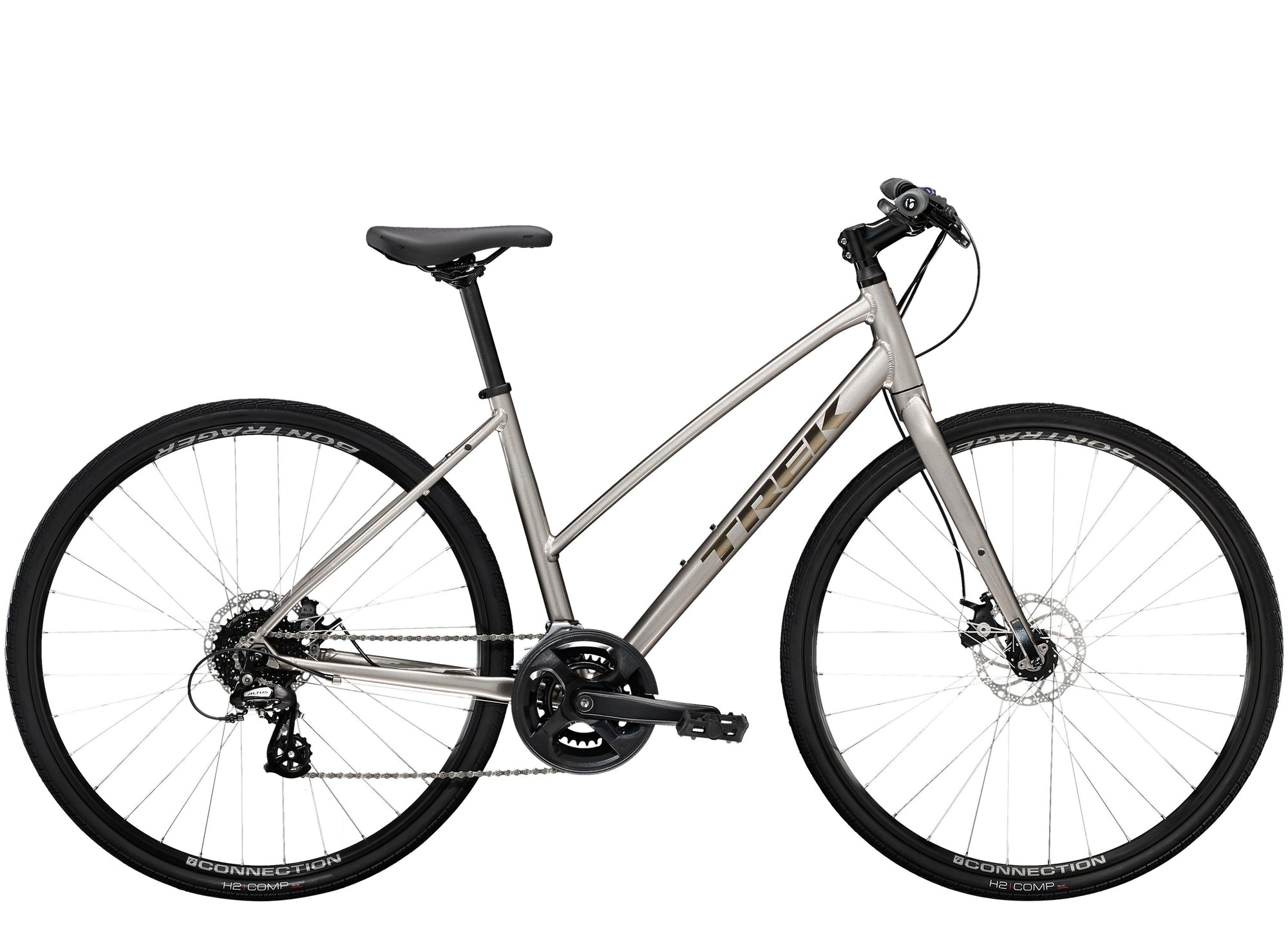

FX 1 Disc Stagger is a hybrid bike with a classic stepthrough frame design thats easier to mount and dismount and modern disc brakes that give you extra stopping power in all weather conditions. Its perfect for anyone looking to get out more, ride as a family, do a bit of exercise, or commute to work on a versatile bike backed by a lifetime warranty.
- Its versatile and does whatever you want it to do, whether thats riding for fitness, commuting, or cruising to the farmers market to pick up groceries
- The stepthrough frame makes it easy to hop on and go, and hop off when your ride is over
- More confident braking means bad weather doesnt have to keep you from enjoying your ride
- You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S
- Like every Trek hybrid, its backed by a lifetime warranty and supported by a wide network of retail partners
Make it your own
Customize your bike with fenders, racks, bottle cages, and more to make it your own.
![]()
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
![]()
| Frame |
Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR |
| Fork |
FX Steel, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR |
| Wheel Front |
/ |
| Tire |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm |
| Hub Front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Hub Rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Skewer Front |
130x5mm QR, ThruSkew |
| Skewer Rear |
152x5mm QR |
| Shifter |
Shimano EF500, 8 speed // Shimano EF500, 8 speed |
| Front Derailleur |
Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull |
| Rear Derailleur |
Shimano Altus M310 |
| Crank |
Forged alloy, 46/30, chainguard, 170mm length |
| Bottom Bracket |
Sealed cartridge, 68mm |
| Cassette |
Shimano HG31, 11-32, 8 speed |
| Chain |
KMC Z8.3 |
| Brake |
Tektro MD-U310 mechanical disc, flat mount, 160mm rotor // Tektro MD-U310 mechanical disc, flat mount, 160mm rotor |
| Pedal |
Wellgo nylon platform |
| Saddle |
Bontrager Sport Womens |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Handlebar |
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width |
| Stem |
Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length |
| Headset |
1 1/8 steel threadless |
| Grips |
Bontrager Satellite |
Geometry Chart
| B B Drop |
6.5 |
| B B Height |
29.6 |
| Chainstay Length |
45 |
| Eff Top Tube |
53.7 |
| Frame Reach |
38.4 |
| Frame Size Letter |
S |
| Frame Stack |
55.4 |
| Head Angle |
70.5° |
| Head Tube Length |
13 |
| Offset |
5 |
| Seat Tube |
38.1 |
| Seat Tube Angle |
74.5° |
| Standover |
71.1 |
| Trail |
7.5 |
| Wheelbase |
105.5 |
| Wheel Size |
700c |
| B B Drop |
6.5 |
| B B Height |
29.6 |
| Chainstay Length |
45 |
| Eff Top Tube |
55.3 |
| Frame Reach |
38.9 |
| Frame Size Letter |
M |
| Frame Stack |
57.2 |
| Head Angle |
70.5° |
| Head Tube Length |
15 |
| Offset |
5 |
| Seat Tube |
44.5 |
| Seat Tube Angle |
74.0° |
| Standover |
75.7 |
| Trail |
7.5 |
| Wheelbase |
106.7 |
| Wheel Size |
700c |
| B B Drop |
6.5 |
| B B Height |
29.6 |
| Chainstay Length |
45 |
| Eff Top Tube |
56.8 |
| Frame Reach |
39.1 |
| Frame Size Letter |
L |
| Frame Stack |
59.5 |
| Head Angle |
71.5° |
| Head Tube Length |
17 |
| Offset |
5 |
| Seat Tube |
50.8 |
| Seat Tube Angle |
73.5° |
| Standover |
78.8 |
| Trail |
6.8 |
| Wheelbase |
106.7 |
| Wheel Size |
700c |
