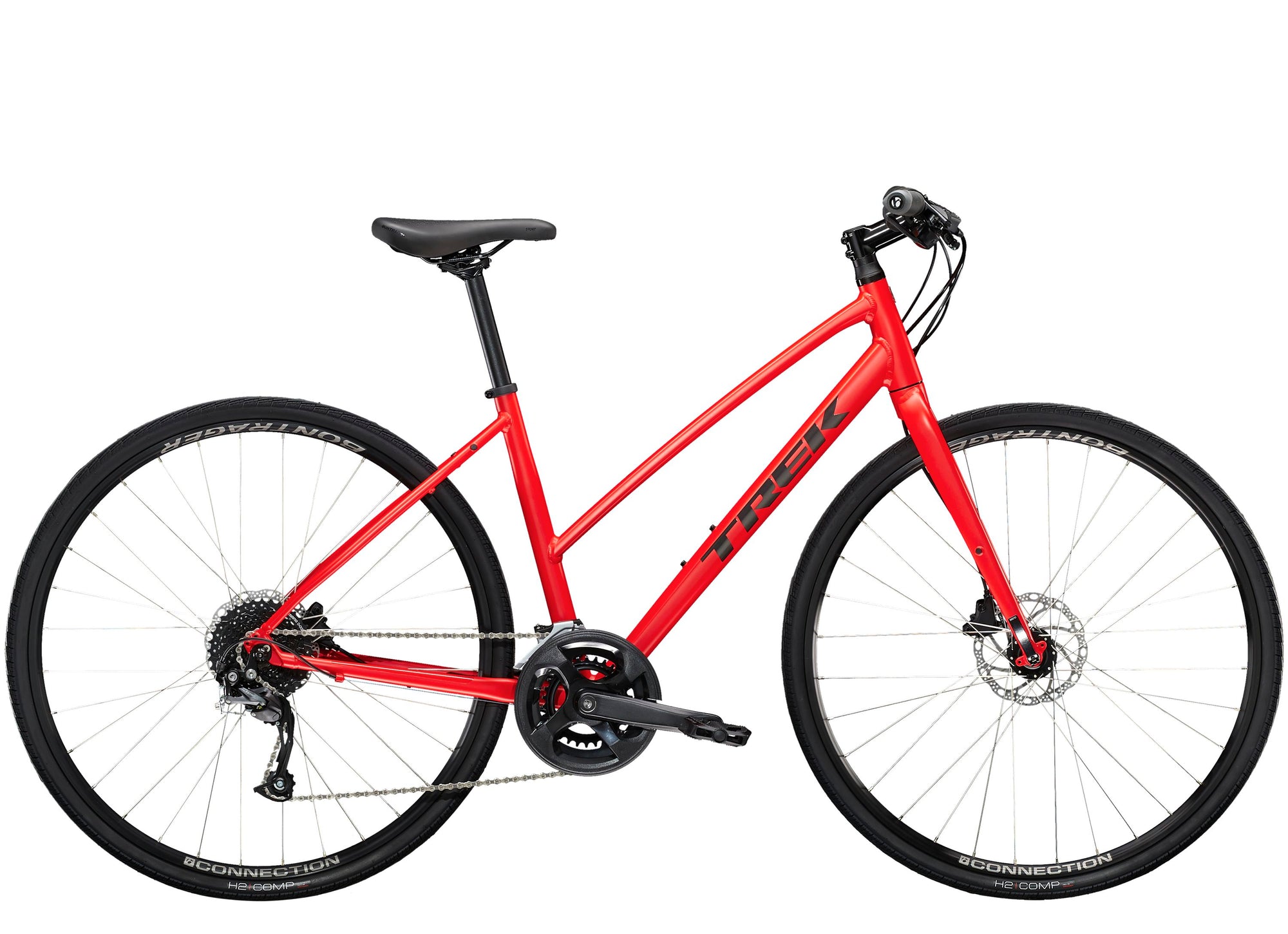

FX 2 Disc Stagger is a stylish and versatile hybrid bike with a classic stepthrough frame geometry thats easier to mount and dismount. Train, commute, or ride for fun with the wide range of speeds, reliable disc brakes that let you stop on a dime, and loads of mounts for accessories.
- The stepthrough frame makes it easy to hop on and go, and hop off when your ride is over
- You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S
- The cables are routed internally, which protects them from the elements and adds to the bikes sleek look
- Its easy to accessorize with racks, a kickstand, fenders, lights, and more!
- Like every Trek hybrid, its backed by a lifetime warranty and supported by a wide network of retail partners
Make it your own
Customize your bike with fenders, racks, bottle cages, and more to make it your own.
![]()
Upgrade your pedals and love your bike more
Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.
![]()
| Frame |
Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR |
| Fork |
FX Alloy, flat mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5mm QR |
| Wheel Front |
/ |
| Tire |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm |
| Hub Front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
| Hub Rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Skewer Front |
130x5mm QR, ThruSkew |
| Skewer Rear |
152x5mm QR |
| Shifter |
Shimano Altus M2010, 9 speed // Shimano Altus M2010, 2 speed |
| Front Derailleur |
Shimano Acera T3000, 34.9mm clamp, top swing, dual pull |
| Rear Derailleur |
Shimano Altus M2000, long cage |
| Crank |
Forged alloy, 46/30, chainguard, 170mm length |
| Bottom Bracket |
Sealed cartridge, 68mm |
| Cassette |
Shimano HG200, 11-36, 9 speed |
| Chain |
KMC X9 |
| Pedal |
Bontrager City pedals |
| Saddle |
Bontrager Sport Womens |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 600mm width |
| Stem |
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length |
| Headset |
1 1/8 steel threadless |
| Grips |
Bontrager Satellite |
Geometry Chart
| B B Drop |
6.5 |
| B B Height |
29.6 |
| Chainstay Length |
45 |
| Eff Top Tube |
53.7 |
| Frame Reach |
38.4 |
| Frame Size Letter |
S |
| Frame Stack |
55.4 |
| Head Angle |
70.5° |
| Head Tube Length |
13 |
| Offset |
5 |
| Seat Tube |
38.1 |
| Seat Tube Angle |
74.5° |
| Standover |
71.1 |
| Trail |
7.5 |
| Wheelbase |
105.5 |
| Wheel Size |
700c |
| B B Drop |
6.5 |
| B B Height |
29.6 |
| Chainstay Length |
45 |
| Eff Top Tube |
55.3 |
| Frame Reach |
38.9 |
| Frame Size Letter |
M |
| Frame Stack |
57.2 |
| Head Angle |
70.5° |
| Head Tube Length |
15 |
| Offset |
5 |
| Seat Tube |
44.5 |
| Seat Tube Angle |
74.0° |
| Standover |
75.7 |
| Trail |
7.5 |
| Wheelbase |
106.7 |
| Wheel Size |
700c |
| B B Drop |
6.5 |
| B B Height |
29.6 |
| Chainstay Length |
45 |
| Eff Top Tube |
56.8 |
| Frame Reach |
39.1 |
| Frame Size Letter |
L |
| Frame Stack |
59.5 |
| Head Angle |
71.5° |
| Head Tube Length |
17 |
| Offset |
5 |
| Seat Tube |
50.8 |
| Seat Tube Angle |
73.5° |
| Standover |
78.8 |
| Trail |
6.8 |
| Wheelbase |
106.7 |
| Wheel Size |
700c |
