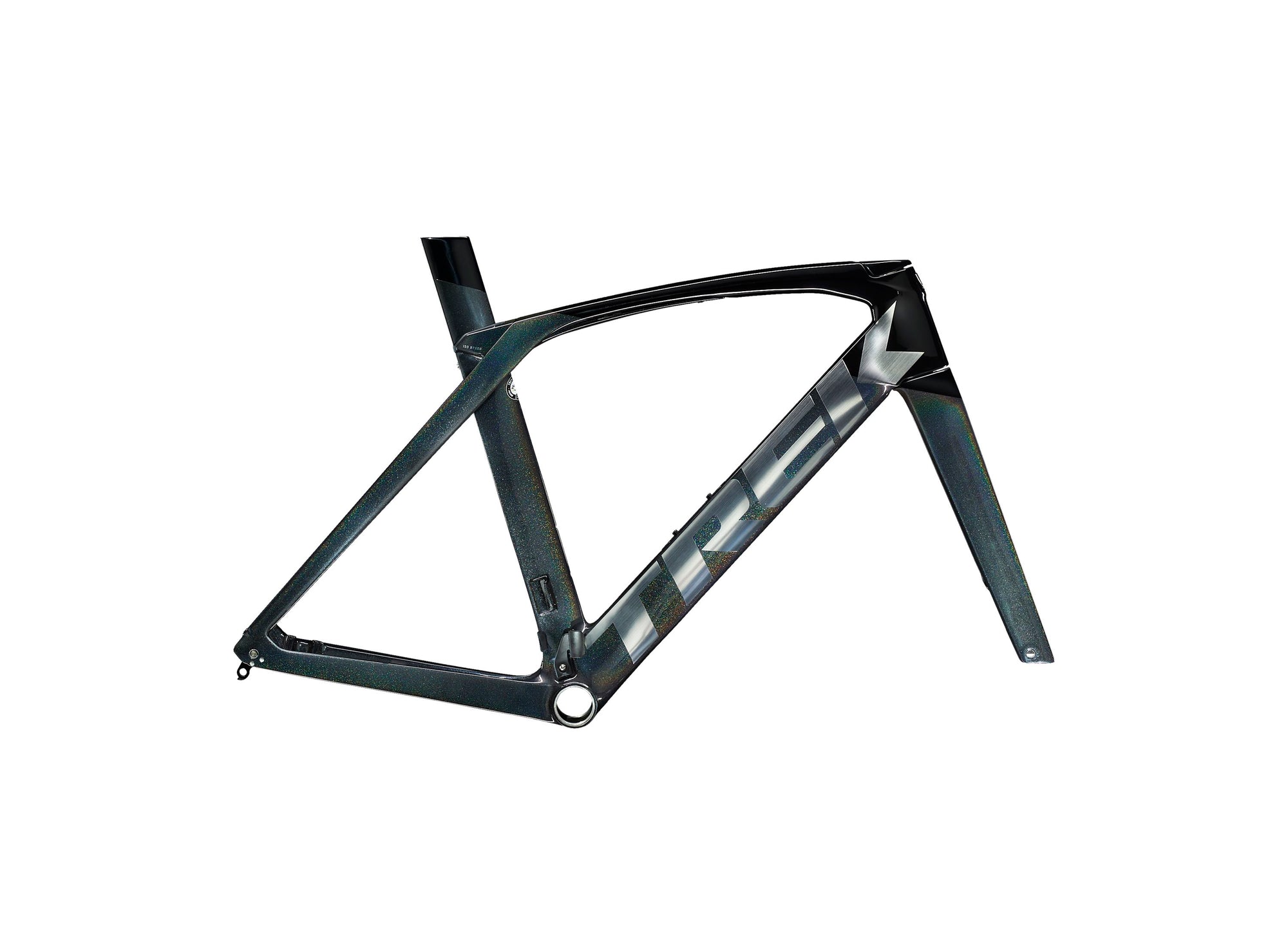

Madone SLR Disc frameset is the ultimate platform for a custom aerodynamic road bike. Its built with our all-new, ultralight 800 Series OCLV Carbon layup and road-smoothing Adjustable Top Tube IsoSpeed.
![]()
![]()
![]()
![]()

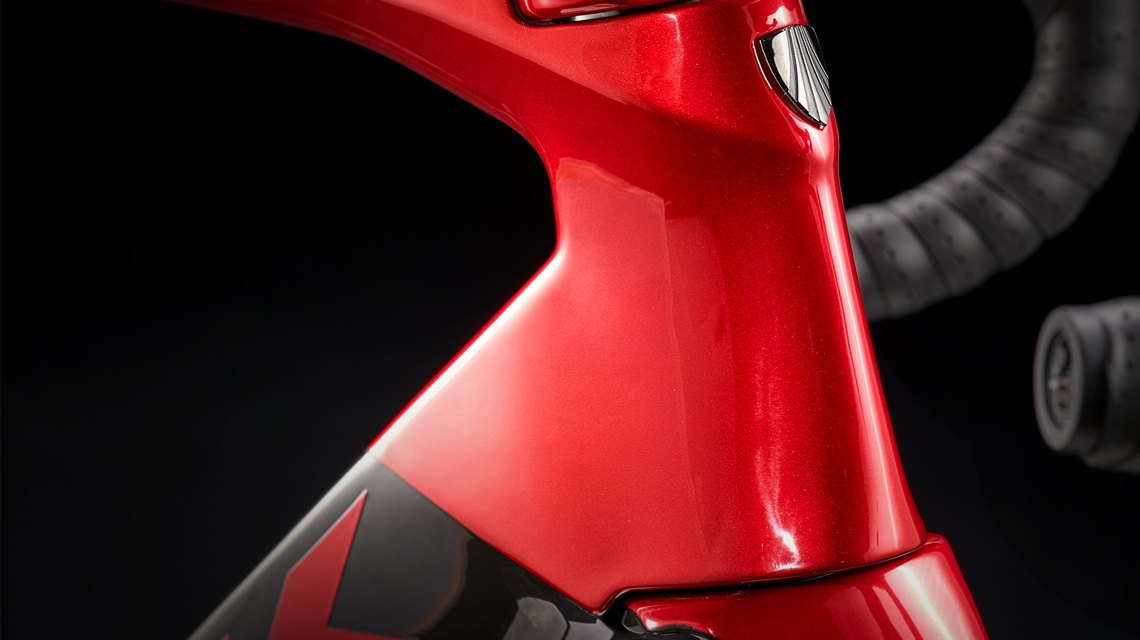

- 800 Series OCLV Carbon is the lightest laminate we’ve ever made, and it makes Madone faster on any terrain, in any conditions
- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and its damped with an elastomer so it rebounds in a smooth, controlled, stable motion.
- Madone Project One ICON paint schemes make the ultimate race bike a true piece of artwork
- Built for flat-mount disc brakes for extra tire clearance and all-weather stopping power
800 Series OCLV Carbon
It’s the lightest laminate we’ve ever made, and it makes Madone faster on any terrain, in any conditions.

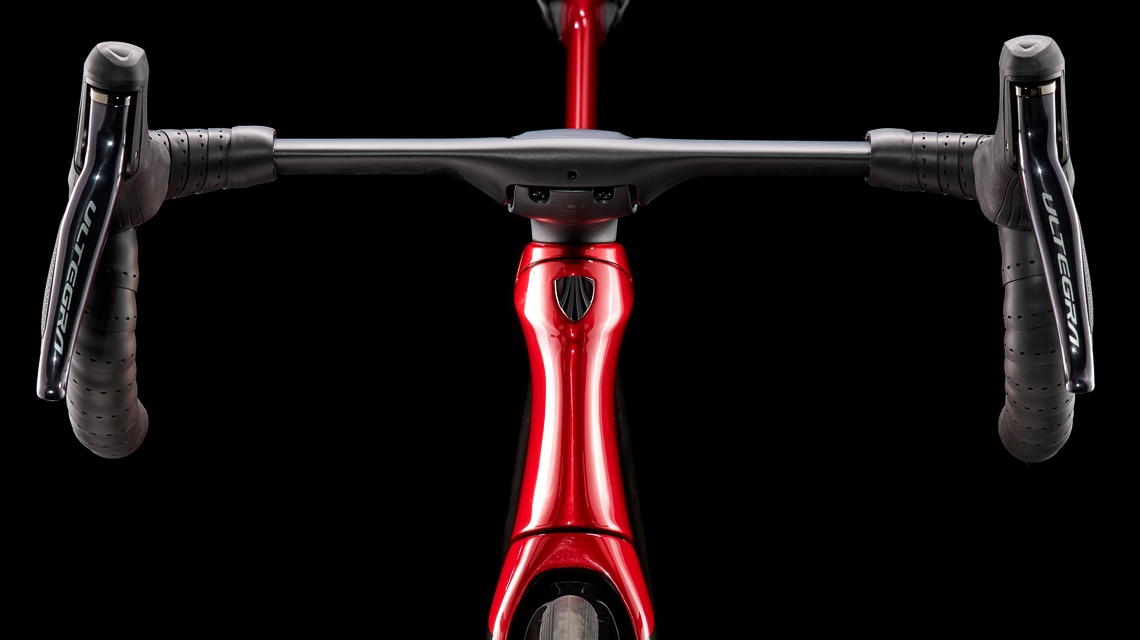

Unprecedented integration
Every element of this bike is part of a greater whole. It has invisible cable routing, aero cockpit, hidden seatmast, integrated brakes, and more.
Race-winning aerodynamics
On the road and in the wind tunnel, Madone’s exclusive Kammtail Virtual Foil tube shape ranks among the most aero in the world.

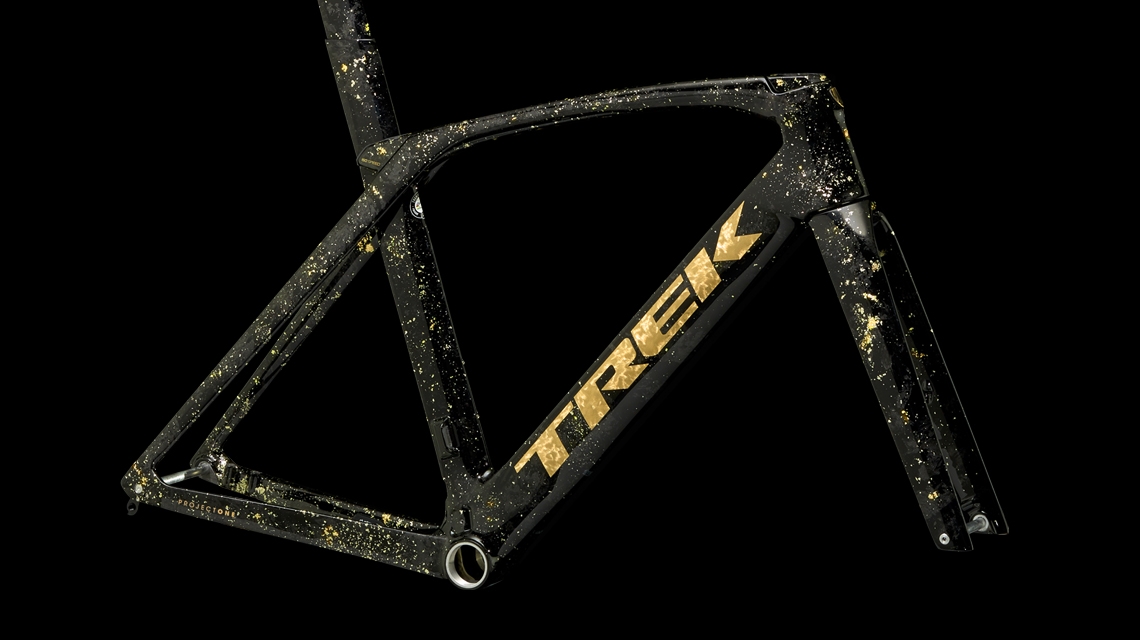

Uniquely yours
Make your Madone a true piece of artwork with a premium Project One ICON paint scheme
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Skewer Front | Bontrager Switch thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Front Derailleur | Mechanical front derailleurs must have a full-housing stop (example: Shimano toggle front derailleurs) |
Geometry Chart
| B B Drop | 7.2 |
| Chainstay Length | 41 |
| Eff Top Tube | 52.1 |
| Frame Reach | 37.8 |
| Frame Size Number | 50cm |
| Frame Stack | 52.1 |
| Head Angle | 72.1° |
| Head Tube Length | 11.1 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 64.5 |
| Saddle Rail Height Max Tall | 68 |
| Saddle Rail Height Min Short | 58.5 |
| Saddle Rail Height Min Tall | 62 |
| Seat Tube | 45.3 |
| Seat Tube Angle | 74.6° |
| Standover | 71.1 |
| Trail | 6.2 |
| Wheelbase | 97.4 |
| Wheel Size | 700c |
