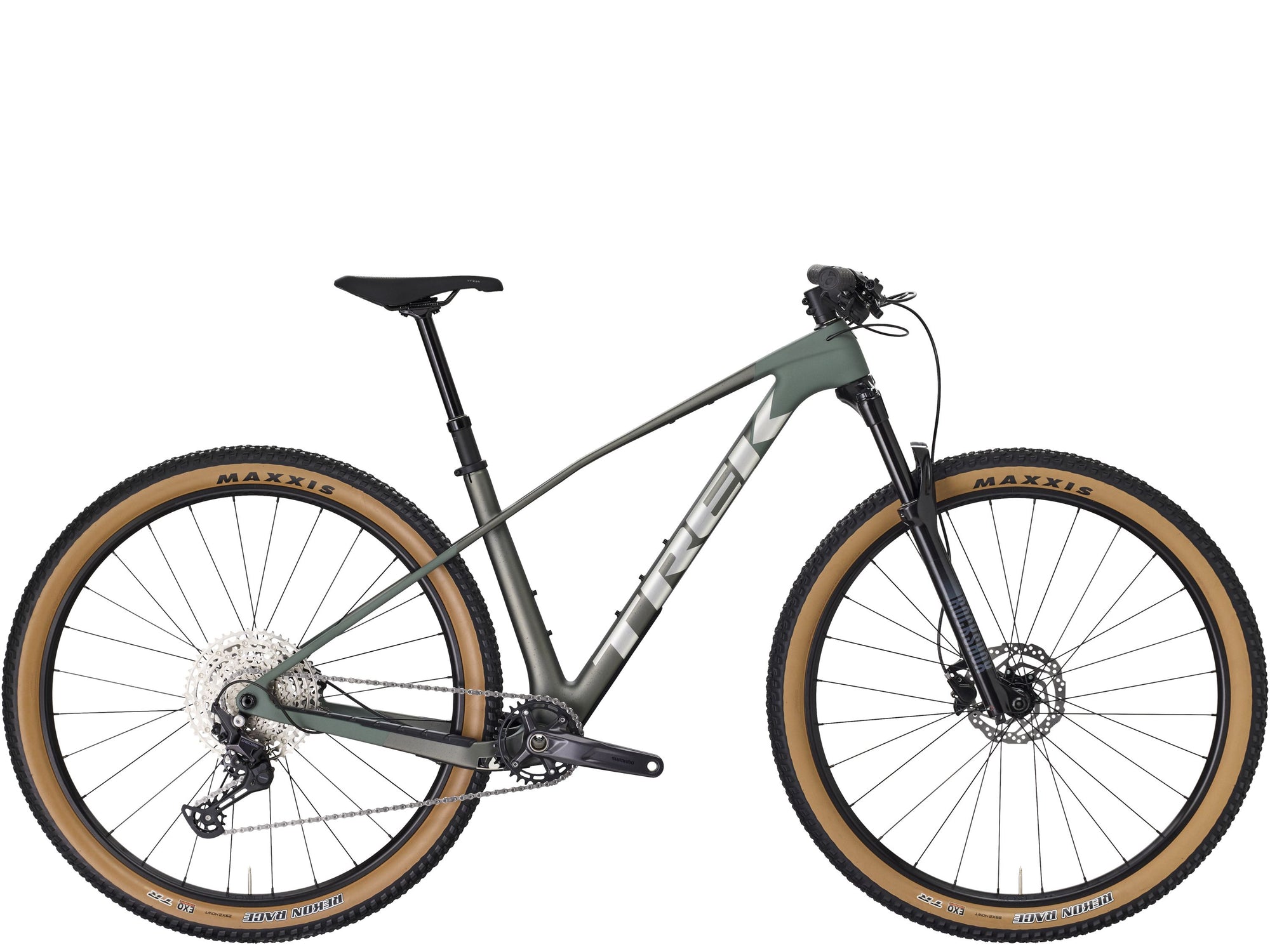

Procaliber 9.5 XL Matte Keswick Green/Mercury

$2,499.99 Sale Save

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Adding to Cart Added to Cart
Procaliber 9.5 Gen 3 is a race-ready carbon hardtail ready to rocket up singletrack climbs. It packs in IsoBow vibration-damping tech to smooth out the chatter and aggressive XC geometry thats confident, capable, and nimble.
  • You get the hardtail efficiency you crave without the chatter thanks to IsoBow vibration-absorbing technology
  • The OCLV Mountain Carbon construction is light, tough, and stiff, with just enough compliance to keep comfortable in the rough
  • It comes equipped with a 120mm suspension fork for soaking up the gnarly obstacles that pepper modern XC race courses
  • Its a race-ready bike that doesnt break the bank thanks to its workhorse Shimano and RockShox build
  • You get huge clearance for up to 2.4" tires, so you can roll with plenty of grip on loose, technical courses

Smooth means fast

Innovative IsoBow frame technology extends Procalibers seatstays beyond the seat tube, allowing for increased vertical complicane that smooths trail chatter while reducing frame weight.

Cool and composed

With a slacker head tube angle than most XC bikes and longer 120mm travel, Procaliber Carbons calm demeanor encourges you to step on the gas.

Float and flex

Rather than mounting to the seatstay, the brake secures to an extension of the rear axle, allowing the seat stay to flex and damp vibrations from the trail without impacting braking consistency and modulation.

OCLV Mountain Carbon

Treks mountain-specific carbon fiber is tougher carbon, with unique materials and layup procedures, Treks advanced engineering, and a higher standard of testing.

Shimano Deore

Shimano Deore brings even more adventure with a wider range of gear choices for the steep stuff, the fast stuff, and the fun. With smooth riding, improved chain stability, and sharp shifting, Deore heightens your mountain biking confidence and control so you can focus on the trail and enjoy the ride.

You almost forgot your pedals

This bike doesn’t come with pedals because youll have a better ride if you choose your own. See the pedal guide to find the best pedals for your riding style. Want pedals built for the race? We recommend clipless MTB pedals for control & efficiency.


Frame OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post mount brake, Boost148
Fork RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Tire Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40
Tire Part Bontrager TLR sealant, 6oz
Hub Front Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub Rear Shimano TC500 alloy, centerlock, 148x12mm thru axle
Rim Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Rim Strip Bontrager TLR
Skewer Rear Bontrager Switch thru axle, removable lever
Shifter Shimano Deore M6100, 12 speed
Rear Derailleur Shimano Deore M6100, long cage
Crank Shimano MT512, 32T, 55mm chainline, 175mm
Bottom Bracket Shimano MT500, 92mm, PressFit
Cassette Shimano Deore M6100, 10-51, 12 speed
Chain Shimano Deore M6100, 12 speed
Brake Shimano MT200 hydraulic disc
Brake Rotor Shimano RT10, centerlock, 160mm // Shimano RT10, centerlock, 180mm
Saddle Verse Short, chromoly rails, 145mm width
Seatpost Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
Seat Collar Bolt-on, 36.4mm
Handlebar Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Headset FSA IS-2, 1-1/8 top, 1.5 bottom
Grips Trek Line Comp, nylon lock-on

Geometry Chart

B B Drop 6.4
B B Height 30.9
Chainstay Length 44
Eff Seat Tube Angle 74.3°
Eff Top Tube 67.7
Frame Reach 50
Frame Size Letter XL
Frame Stack 64.2
Head Angle 67.0°
Head Tube Length 12
Offset 4.3
Seat Tube 51
Seat Tube Angle 73.0°
Standover 79.1
Wheelbase 122.7
Wheel Size 29"
