Supercaliber F/S S Navy Smoke to Alpine Blue Fade

$4,219.99 Sale Save

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Adding to Cart Added to Cart
Supercaliber Frameset is built with light-yet-tough OCLV Mountain Carbon and our exclusive IsoStrut integrated shock for a cross country race bike thats insanely fast and capable. Pair it with a 100mm fork and your favorite parts spec for a field-leading build thatll crush even the toughest courses.
  • Supercaliber is a World Cup-worthy bike that’s quick, capable of soaring through techy terrain, and nearly as light as a hardtail
  • Our exclusive IsoStrut shock provides tunable, damped suspension for a smooth and efficient ride

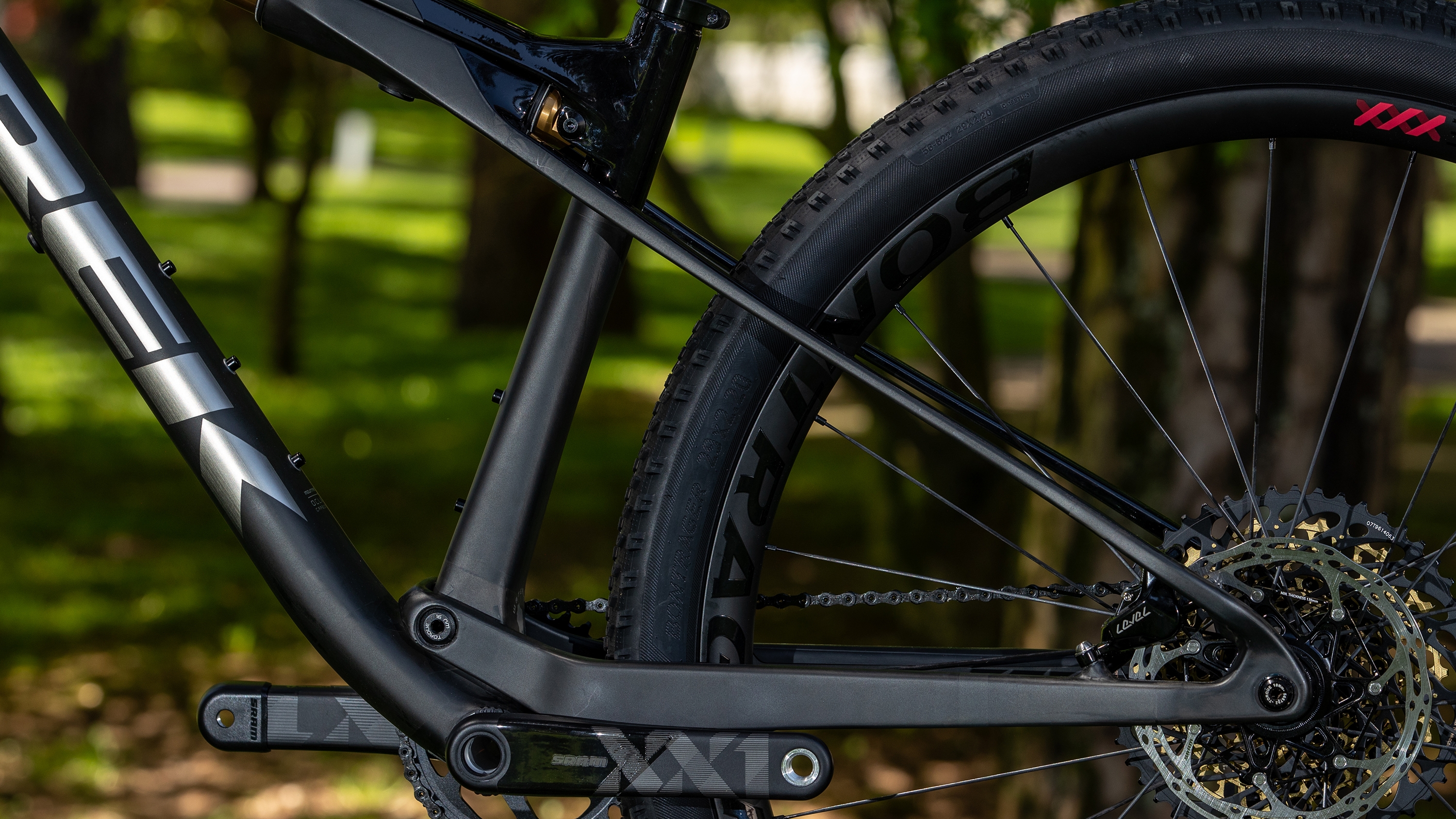

  • Pivotless seat stays save on weight and actively bend to help soak up trail chatter

Nothing else like it

Supercaliber’s unique frame design ditches traditional suspension hardware so there’s less weight, less maintenance, and less lateral flex. IsoStrut connects the mainframe to the pivot-less seat stays to offer about 60mm of rear wheel travel. This design offers a unique blend of efficiency, traction, and fatigue-fighting compliance that keeps racers fresh and in control.

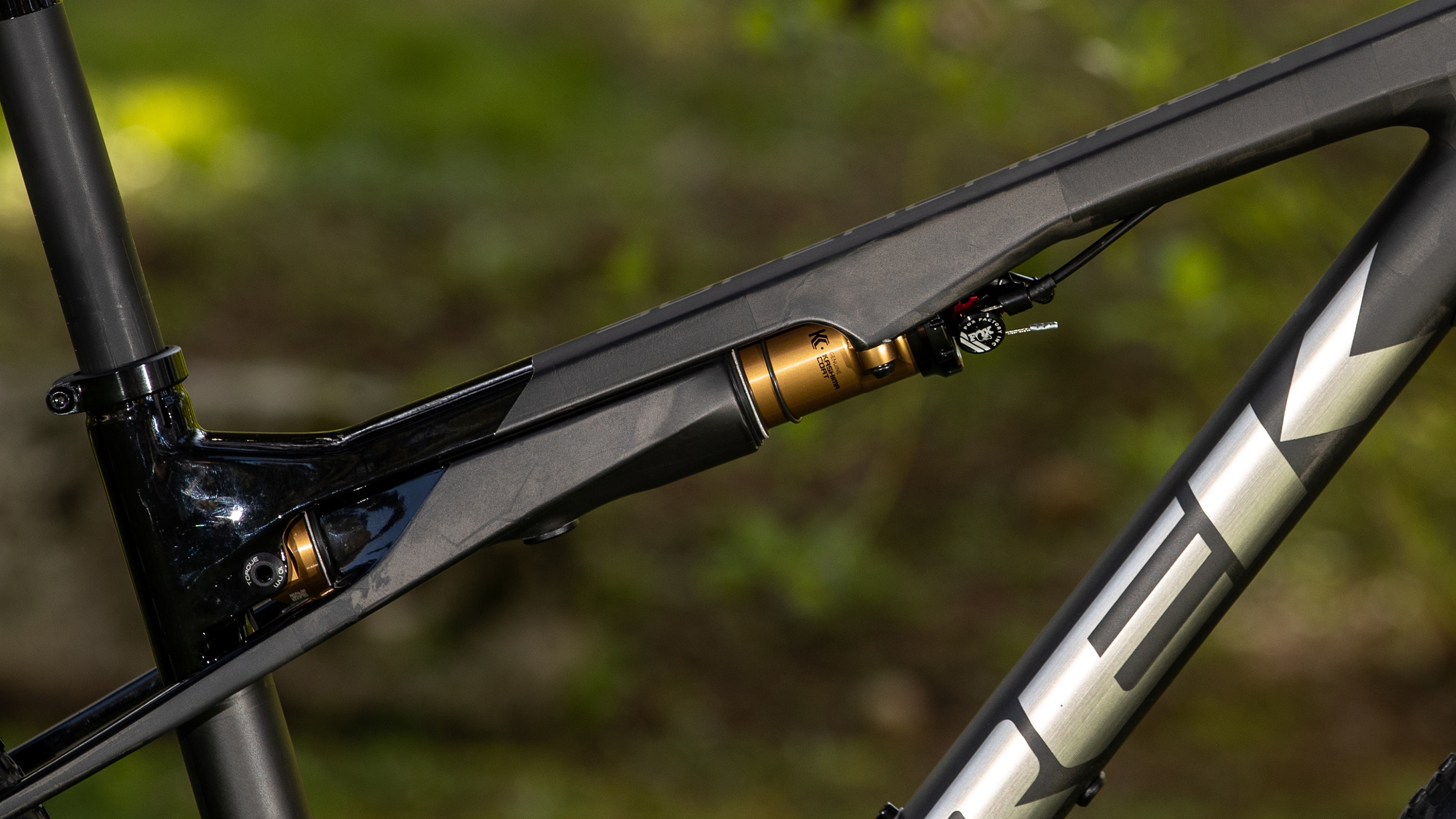

IsoStrut

IsoStrut integrated suspension gives you just enough travel to stay in control. Its fully tuneable like a standard rear shock, but without the weight penalty of a full suspension bike.

OCLV Mountain Carbon

Treks mountain-specific carbon is engineered to withstand the extreme demands of off-road racing. Advanced analysis allows our designers to create a frame with the best blend of light weight, responsiveness, and just enough compliance in the seat stays to eliminate the need for a heavy rear pivot system.

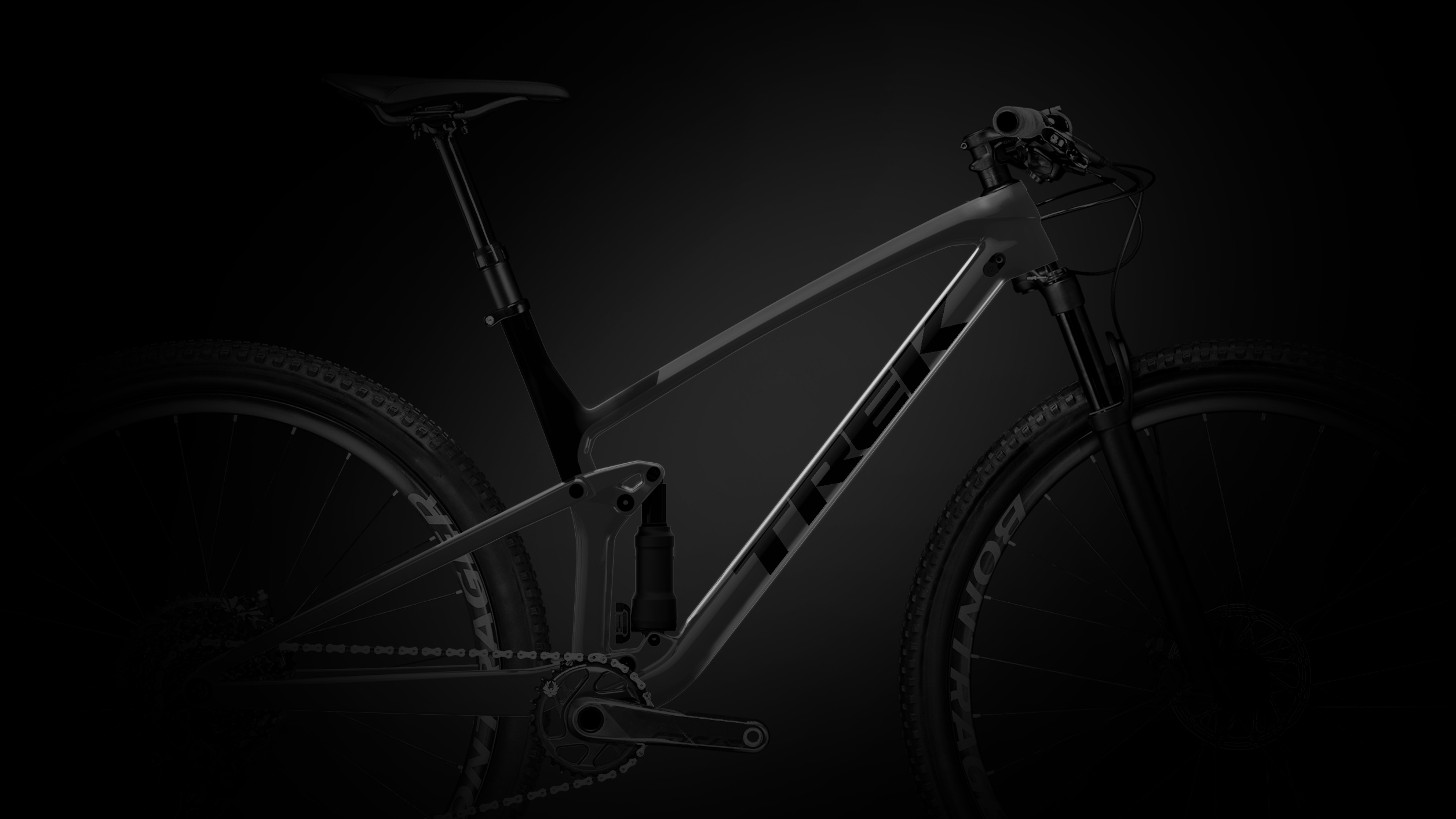

Straight Shot downtube

Straight Shot downtube gives you an extra-stiff frame without adding any weight, so you can stick your line through the rough stuff and still fly up the next climb.

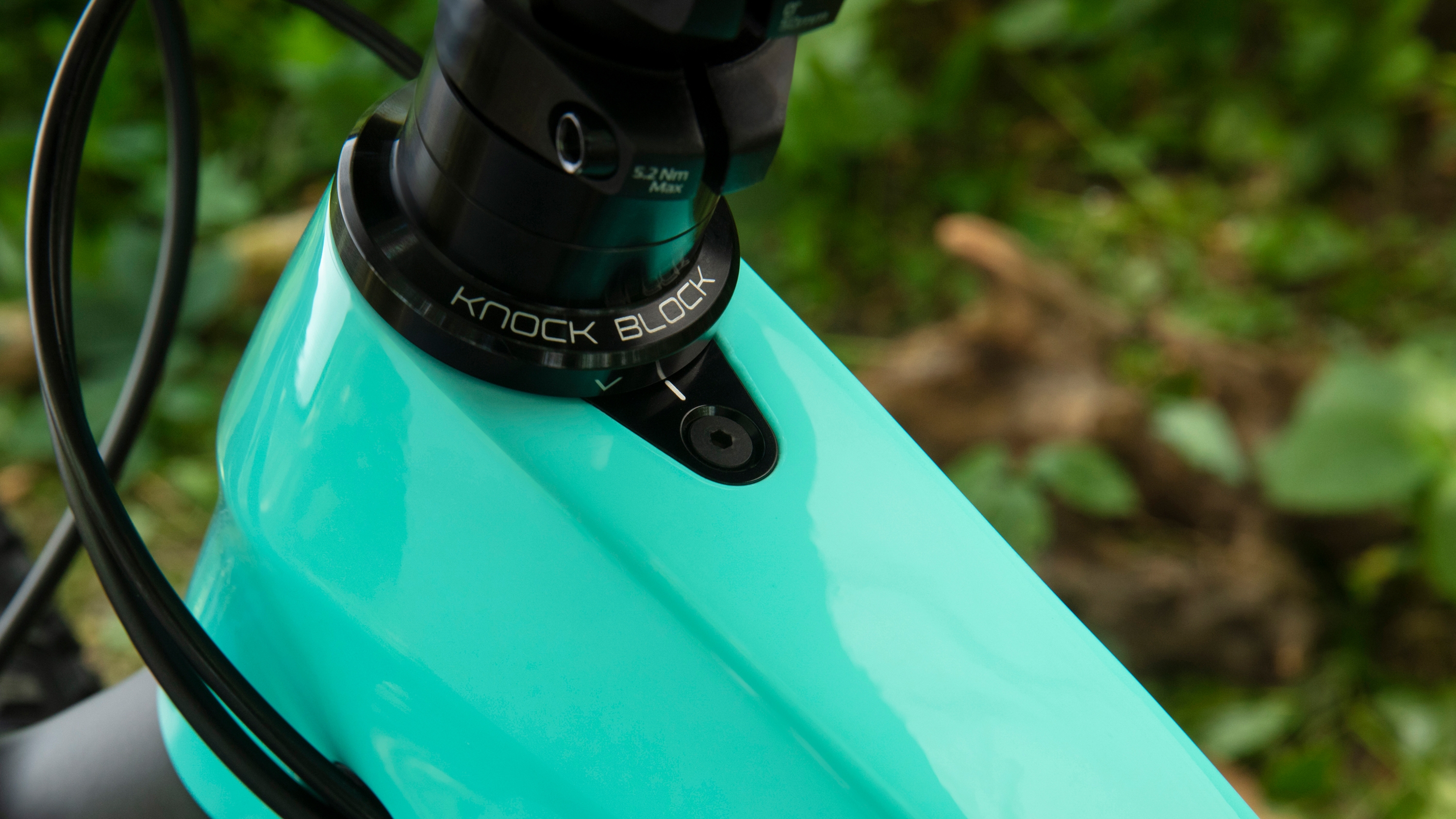

Knock Block

Knock Block has your frames back when things go wrong. It prevents your handlebars from spinning all the way around in a crash, so your hoses wont get yanked, and your controls wont hit the top tube.


Frame OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Shock Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm
Suspension Lever Fox 2-position dual lockout lever
Skewer Rear Bontrager Switch thru axle, removable lever
Headset Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8 top, 1.5 bottom

Geometry Chart

B B Drop 5.3
B B Height 32
Chainstay Length 43
Eff Seat Tube Angle 74.0°
Eff Top Tube 56.5
Frame Reach 39.5
Frame Size Letter S
Frame Size Number 15.5"
Frame Stack 59.4
Head Angle 69.0°
Head Tube Length 9
Offset 4.4
Seat Tube 39.4
Seat Tube Angle 70.0°
Standover 75
Trail 9.6
Wheelbase 107.9
Wheel Size 29"
